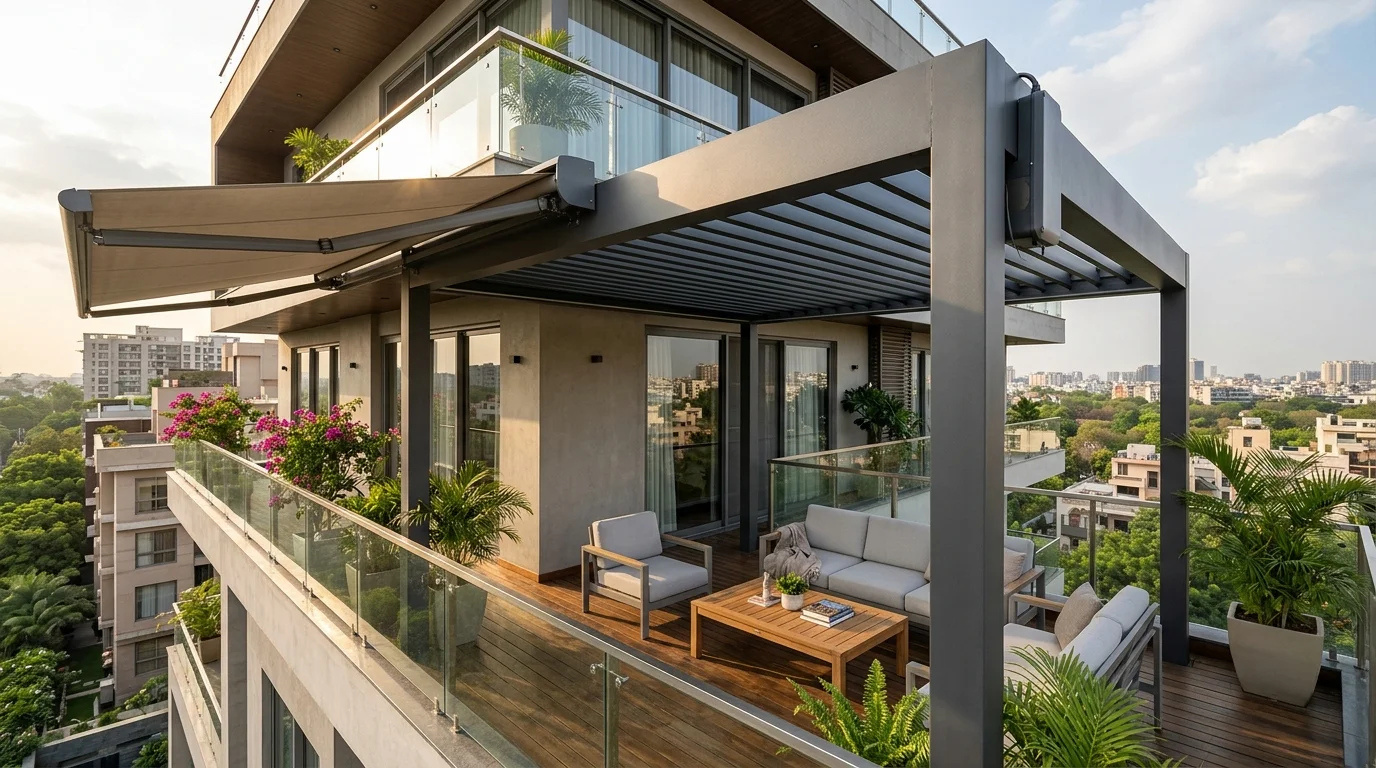

Jindal Aluminium Awning and Pergola Sections Guide

In modern residential architecture, luxury villa construction, commercial rooftop cafes, and premium hospitality spaces, outdoor living environments have become a defining architectural priority. Expanding usable outdoor square footage while delivering responsive protection against harsh weather has driven massive adoption of advanced architectural shading systems—specifically motorized louvered pergolas, full-cassette retractable folding-arm awnings, and fixed architectural canopies.

At the core of every reliable, smooth-operating shading structure lies precision-engineered extruded aluminium. Unlike mild steel structures that rust relentlessly under seasonal monsoon rains or timber pergolas that warp, splinter, and attract termites, high-tensile Alloy 6063-T6 and 6082-T6 aluminium extrusions deliver permanent rust immunity, sleek contemporary sightlines, and lightweight mechanisms that dramatically reduce load on automated tubular drive motors.

Curated by the architectural outdoor shading and profiles division at Premier Aluminium Traders—authorized distributor and stockist of Jindal Aluminium Limited in Paharganj, New Delhi since 1978—this comprehensive commercial guide explores the mechanical anatomy of modern awning and pergola extrusions, wind-load resistance engineering, surface coating standards, and wholesale system procurement for fabricators across North India.

1. Why High-Tensile Aluminium Outperforms Mild Steel & Wood

Selecting the structural framework material for an outdoor canopy directly governs its operational lifespan, maintenance overhead, and aesthetic appeal:

Comparison Metric	Jindal Extruded Aluminium (6063-T6)	Mild Steel (MS) Hollow Sections	Hardwood / Treated Timber
Monsoon Corrosion Defense	100% Naturally Rust-Proof	Prone to deep rust; requires frequent painting	Absorbs moisture; rots and mildews
Mechanism Weight	Ultra-lightweight ($2.70\text{ }g/cm^3$)	3.0x heavier ($7.85\text{ }g/cm^3$)	Heavy ($0.85 - 1.10\text{ }g/cm^3$)
Motorized System Wear	Low torque strain on tubular motors	Extreme motor strain; premature gear failure	High motor strain; inconsistent movement
Termite & Pest Immunity	100% Impervious	100% Impervious	High risk of termite infestation
Internal Water Drainage	Concealed internal downspouts inside posts	Requires external ugly PVC pipes	Difficult to route internally
Delhi NCR Climate Resilience	Stable from 2°C winter to 48°C peak summer	High thermal expansion; peeling paint	Severe seasonal warping, twisting & cracking

2. Anatomy of Modern Outdoor Awning & Pergola Extrusions

A high-performance architectural shading system comprises several specialized extruded profiles engineered to interlock with millimeter precision:

                          [ RETRACTABLE FULL-CASSETTE AWNING ]
             +-------------------------------------------------------+
             |   Heavy Extruded Aluminium Cassette Enclosure (Jindal)|  <--- Protects Motor &
             +---------------------------+---------------------------+       Fabric from Dust
                                         |
                       +-----------------+-----------------+
                       |                                   |
                       v                                   v
             [ Folding Arm Profile ]             [ Folding Arm Profile ] <--- High-Tensile 6082
             (Heavy Spring Inside)               (Heavy Spring Inside)        Hollow Box
                       |                                   |
                       +-----------------+-----------------+
                                         |
                                         v
             +-------------------------------------------------------+
             |   Extruded Front Drop Bar with Gutter Channel         |  <--- Spline Slot Holds
             +-------------------------------------------------------+       Fabric Taut

1. Full-Cassette & Semi-Cassette Enclosures

Function: When retracted, the entire fabric roll and motorized drive shaft are sealed inside an extruded aerodynamic aluminium casing.
Why It Matters: In dusty North Indian environments (such as Delhi NCR, Haryana, and Rajasthan), airborne particulate matter and ultraviolet radiation rapidly degrade awning fabrics. The sealed aluminium cassette shields the fabric and motor from smog, acid rain, and bird droppings, extending fabric service life from 3 years to over 10 years.

2. High-Tensile Folding Arms

Function: Heavy dual-section hollow aluminium arms containing internal high-tension stainless steel springs and aircraft-grade steel cables or roller chains.
Engineering Requirement: Arms must resist severe upward and downward wind gusts without flexing. Jindal structural extrusions utilize heavy wall thicknesses ($2.5\text{ mm}$ to $3.5\text{ mm}$) in Alloy 6082-T6, providing the proof stress ($\ge 250\text{ }MPa$) needed to prevent permanent arm distortion.

3. Front Lead Rail with Integrated Rain Gutter

Function: The front horizontal profile that extends outward with the arms.
Features: Extruded with precision internal spline channels to lock the acrylic fabric bead, flanked by a curved bottom lip that acts as a continuous rainwater collection gutter, directing runoff away from outdoor dining areas.

3. Motorized Louvered Pergolas: The Ultimate All-Weather System

Bioclimatic motorized pergolas represent the pinnacle of modern architectural shading:

             +=======================================================+
             |   Heavy Perimeter Ring Beam (150 x 50 mm / 200 x 60 mm)|
             +===========================+===========================+
                                         |
             +----[ Rotating Aerofoil Louver Blade ]-----------------+ <--- Tilts 0° to 135°
             +----[ Rotating Aerofoil Louver Blade ]-----------------+      Integrated EPDM
             +----[ Rotating Aerofoil Louver Blade ]-----------------+      Gasket Seal
                                         |
             +===========================+===========================+
             |   Structural Upright Column Post (120 x 120 mm)       | <--- Concealed
             |   With Integrated Internal Rainwater Downspout        |      Internal Drainage
             +=======================================================+

1. Aerofoil Louver Blades (Dual-Wall Extrusions)

Engineered with dual hollow chambers to provide exceptional spanning strength ($up to 4.5\text{ meters}$ without intermediate sag).
Louver edges feature co-extruded channels fitted with soft EPDM rubber gaskets. When closed flat ($0^\circ$), adjacent louvers interlock to create a 100% watertight roof capable of withstanding heavy monsoon cloudbursts.

2. Concealed Internal Downspouts

Rainwater shedding off the closed louvers collects in internal perimeter gutter channels extruded directly into the heavy ring beams.
Water flows seamlessly into the hollow vertical upright posts ($120 \times 120\text{ mm}$ or $150 \times 150\text{ mm}$) and discharges discreetly at the column base, eliminating unsightly external drain pipes.

4. Wind Load & Structural Engineering per Indian Codes (IS 875)

Delhi NCR and Northern India frequently experience sudden, violent pre-monsoon dust storms (Andhi) with wind gusts exceeding $80\text{ to }100\text{ km/h}$:

        WIND LOAD MITIGATION PROTOCOLS:
        1. Automated Wind Sensor Integration (Somfy / Tuya RTS)
           - Automatically retracts folding-arm awnings when wind speeds exceed 38 km/h.
        2. Heavy-Duty Flange Anchoring
           - Upright pergola columns secured with M12 Grade 304 stainless steel anchor
             bolts embedded at least 100 mm into reinforced concrete foundation pads.
        3. Structural Corner Cleats
           - Die-cast or extruded heavy aluminium corner brackets (minimum 8 mm web)
             bolted inside mitered beam-to-column junctions to eliminate sway under gusts.

5. Architectural Surface Finishes for Delhi Outdoor Exposures

Outdoor architectural extrusions are subjected to intense solar radiation, with surface temperatures frequently exceeding 60°C during peak summer months:

Qualicoat Class 2 Architectural Powder Coating: High-durability polyester powder coating with superdurable resin technology. Delivers verified 15-to-20-year color gloss retention and zero chalking under high UV exposure. Popular architectural colors include Anthracite Grey (RAL 7016), Jet Black (RAL 9005), and Off-White (RAL 9010).
Architectural Wood-Grain Sublimation: Vacuum heat-transfer technology that infuses authentic timber wood grains (Teak, Walnut, Dark Oak) into a specialized powder-coated base layer. Provides the warm, organic aesthetic of natural timber pergolas without the rot, termite vulnerability, or ongoing varnish maintenance.

6. Procuring Jindal Awning & Pergola Extrusions at Premier Aluminium Traders

Premier Aluminium Traders is North India’s premier authorized dealer and stockist of Jindal Aluminium Limited architectural and specialty outdoor extrusions:

Comprehensive System Profiles: Full inventory of cassette enclosures, front lead rails, folding arm profiles, heavy louver blades, and structural box columns available at our central Paharganj facility.
Certified Primary Billets: Extruded exclusively from certified primary alloy billets, ensuring maximum structural elasticity, high shear resistance, and flawless surface finish.
Factory Mill Test Certificates (MTC): Verified mechanical tensile strength ($\ge 205\text{ }MPa$ for 6063-T6, $\ge 295\text{ }MPa$ for 6082-T6) and Webster hardness testing reports provided with bulk dispatches.
In-House Value-Added Services: Precision miter circular sawing, component bundle kits, and customized architectural powder coating in standard RAL finishes.

Explore related architectural and outdoor systems:

7. Frequently Asked Questions (FAQs)

1. What is the maximum projection achievable with an aluminium folding-arm awning?

Using heavy-gauge Jindal structural aluminium arm profiles, retractable folding-arm awnings can achieve clear cantilever projections of up to $3.5\text{ to }4.0\text{ meters}$ and continuous horizontal widths of up to $6.0\text{ to }7.0\text{ meters}$ on a single motorized roller tube.

2. Can motorized pergolas be integrated with smart home automation?

Yes. Modern motorized aluminium pergolas utilize standard 230V AC tubular drive motors compatible with smart controllers (such as Somfy, Tuya, or Zigbee), allowing louvers to be operated via handheld remote control, smartphone apps, or automated sun, rain, and wind sensors.

3. How do aluminium pergolas handle heavy monsoon rainfall without leaking?

The rotating louver blades feature co-extruded overlapping lips fitted with continuous EPDM rubber weather gaskets. When rotated flat ($0^\circ$), adjacent blades seal tightly against each other, funneling water into internal perimeter beam gutters and down through hollow column posts.

4. What wall thickness is recommended for structural pergola posts?

For freestanding pergolas up to $4.0\text{ m} \times 4.0\text{ m}$, upright column posts should possess a cross-section of at least $100 \times 100\text{ mm}$ or $120 \times 120\text{ mm}$ with a minimum wall thickness of $2.5\text{ mm}$ to $3.0\text{ mm}$ to ensure adequate structural rigidity and anchor bolt stability.

5. Where can I buy certified Jindal awning and pergola profiles in Delhi NCR?

Genuine Jindal Aluminium awning, canopy, and pergola sections can be procured directly from Premier Aluminium Traders, located at 3/8, D.B. Gupta Road, Paharganj, New Delhi - 110055 (Phone: +91-9891097111 / 011-41657680). Fast delivery across Delhi NCR, Gurgaon, Noida, Faridabad, Ghaziabad, Haryana, Uttar Pradesh, and Rajasthan.
