In industrial automation, modular workstation architecture, cleanroom wall partitions, and structural support framing, extruded aluminium square tubes—designated in civil and structural engineering as Square Hollow Sections (SHS)—are among the most structurally efficient building components. Combining equal biaxial bending strength ($I_{xx} = I_{yy}$) with clean geometric lines, square hollow extrusions provide exceptional resistance to torsional twisting and axial compressive buckling while reducing structural dead weight by up to 65% compared to structural mild steel.

From pharmaceutical cleanroom partition grids that demand mirror-smooth, dust-free anodized surfaces, to heavy-duty solar mounting structure vertical legs and automated warehouse machinery frames, selecting the correct square tube requires precise mathematical verification of wall thickness, radius of gyration ($r$), and axial load capacity per IS 1285 / IS 733 standards.

Curated by the structural materials division at Premier Aluminium Traders—authorized distributor and stockist of Jindal Aluminium Limited in New Delhi since 1978—this technical engineering manual details square tube structural mechanics, Euler column buckling calculations, verified Jindal catalog section weight tables, and wholesale procurement across North India.

---

1. Structural Mechanics: The Biaxial Symmetry Advantage ($I_{xx} = I_{yy}$)

In structural column design, vertical struts are subjected to axial compression forces that can induce catastrophic lateral buckling. Unlike rectangular tubes or I-beams that possess a "weak axis" prone to premature sideways bowing, a square hollow section exhibits identical moments of inertia along both primary axes:

                           WIDTH (A)
         +-------------------------------------------+
         | +---------------------------------------+ |
         | |                                       | |
         | |     BIAXIAL SYMMETRY                  | |
         | |     Ixx = Iyy                         | |  HEIGHT (A)
         | |     Equal Buckling Resistance         | |
         | |     in All 4 Directions               | |
         | |                                       | |
         | +---------------------------------------+ |
         +-------------------------------------------+
                      Wall Thickness (T)

$$I_{xx} = I_{yy} = \frac{A^4 - (A - 2T)^4}{12}$$

Radius of Gyration ($r$) and Slenderness Ratio ($\lambda$)

The resistance of a column to buckling is governed by its Radius of Gyration ($r$):

$$r = \sqrt{\frac{I}{Area}}$$

Because an extruded aluminium square tube concentrates its metal mass along the perimeter perimeter walls at the maximum possible distance from the central neutral axis, it achieves a remarkably high radius of gyration. When calculating the column Slenderness Ratio ($\lambda = \frac{KL}{r}$), square hollow tubes keep slenderness values low, allowing tall vertical uprights to carry massive compressive loads safely.

---

2. Theoretical Weight Formula for Aluminium Square Tubes

The theoretical weight per meter of an extruded aluminium square hollow tube is calculated by multiplying the net cross-sectional area of the four walls by aluminium's density ($\rho = 2.70\text{ }g/cm^3$):

$$\text{Weight per Meter } (kg/m) = 4 \times (A - T) \times T \times 0.00270 \approx 0.0108 \times (A - T) \times T$$

(Where $A$ is the outer square width in millimeters, and $T$ is the nominal wall thickness in millimeters).

---

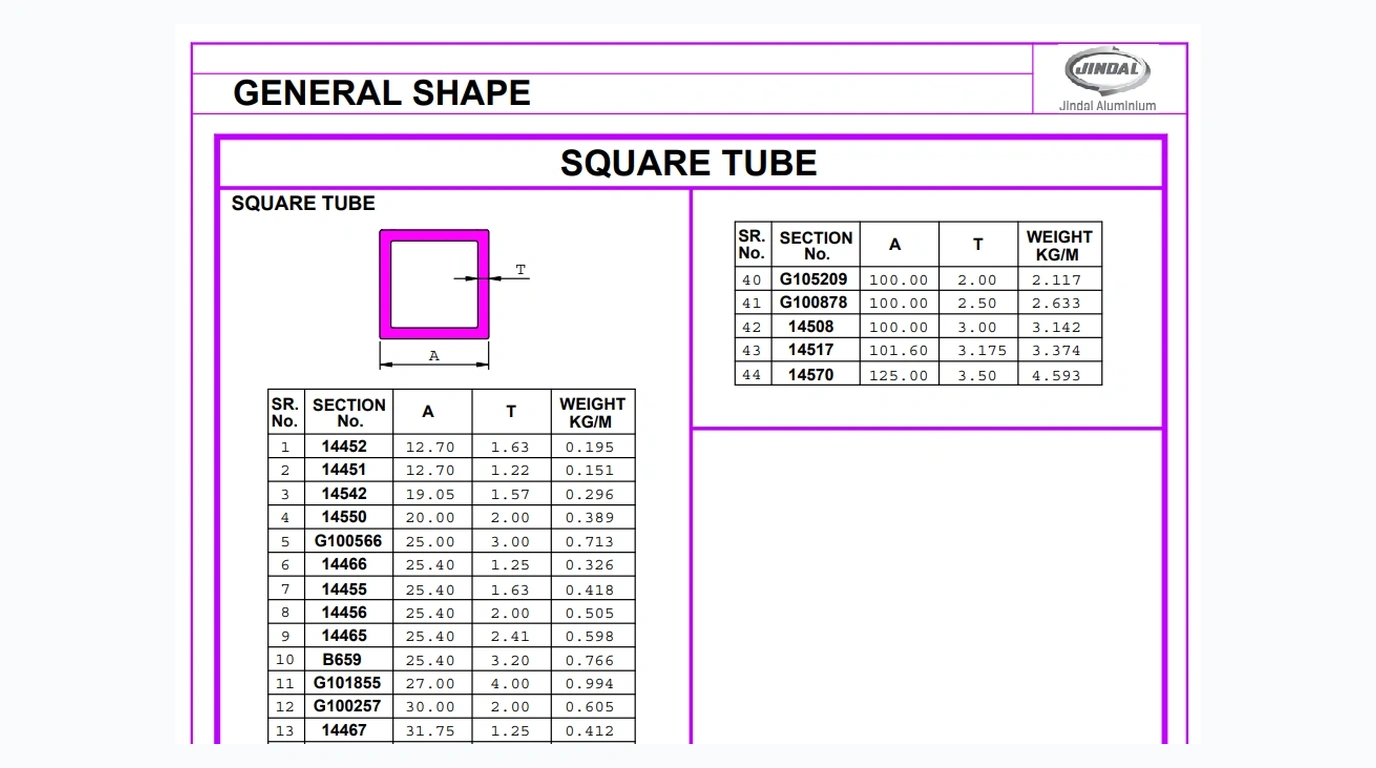

3. Jindal Aluminium Square Tube Catalog Sizing & Weight Chart

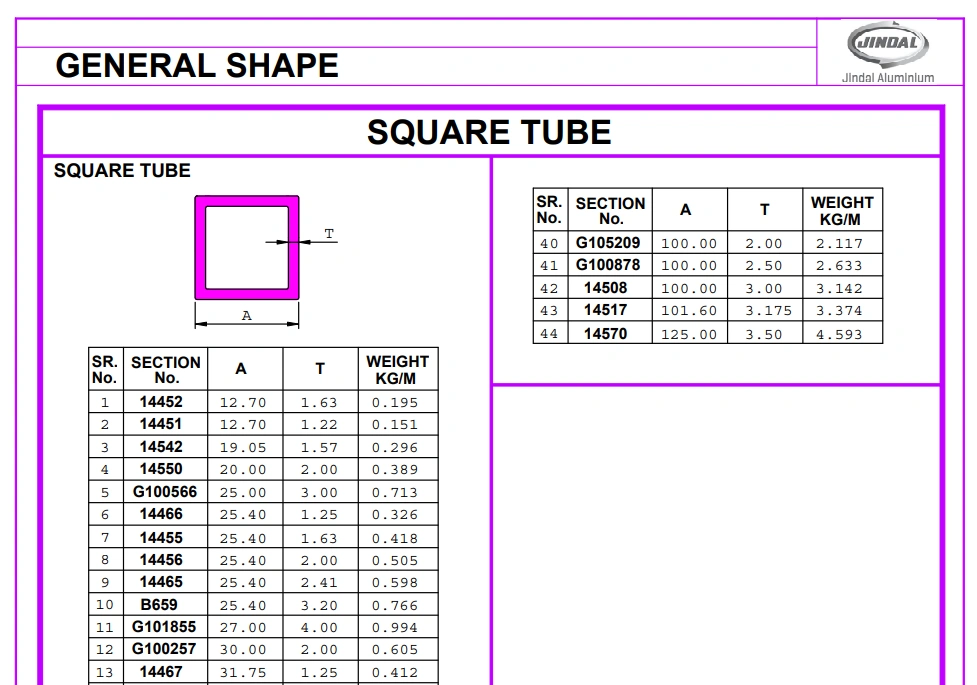

Below is the verified engineering weight schedule extracted directly from the official Jindal Aluminium General Shapes (Square Tube) catalog:

Premier Aluminium Traders also stocks intermediate square tube dimensions including $38.1 \times 38.1\text{ mm} (1.5")$, $50.8 \times 50.8\text{ mm} (2.0")$, and $75 \times 75\text{ mm} (3.0")$ across a full spectrum of wall thicknesses.

---

4. Jindal Square Tubes with Corner Radius (Heavy Structural Series)

In automotive bus body building, high-stress architectural framing, and outdoor structural canopies, extruded square tubes with engineered corner radiuses ($R = 3.0\text{ mm}$ to $7.4\text{ mm}$) eliminate sharp corner notch stresses, optimize paint/anodizing film wrap, and provide enhanced impact resistance.

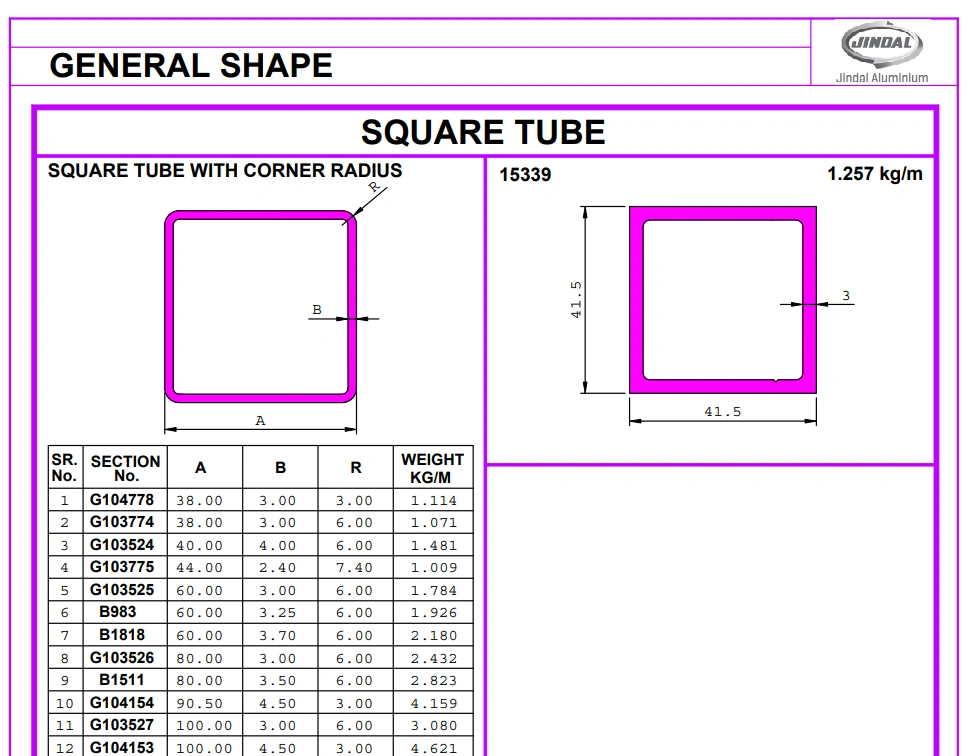

Below is the verified engineering weight schedule from the official Jindal Aluminium General Shapes (Square Tube with Corner Radius) catalog:

---

5. Column Buckling Calculations: Sizing Columns with Euler’s Formula

When designing vertical support pillars for rooftop solar arrays, industrial mezzanine platforms, or architectural canopies, structural safety requires calculating the Critical Buckling Load ($P_{cr}$) via Euler’s Formula:

$$P_{cr} = \frac{\pi^2 \cdot E \cdot I}{(K \cdot L)^2}$$

Where:

• $E$ = Modulus of Elasticity of Aluminium ($70,000\text{ }MPa$ or $70 \times 10^9\text{ }N/m^2$)
• $I$ = Minimum Moment of Inertia ($mm^4$)
• $L$ = Unsupported column height ($mm$)
• $K$ = Column effective length factor ($K = 1.0$ for pinned-pinned, $K = 0.7$ for fixed-pinned, $K = 2.0$ for cantilever fixed-free)

Worked Design Example: Sizing a 3.0-Meter Vertical Solar Support Leg
-------------------------------------------------------------------
- Column Height (L): 3000 mm
- End Conditions: Fixed Base, Pinned Top (K = 0.7) -> Effective Length KL = 2100 mm
- Required Axial Compressive Load Capacity: 35 kN (35,000 N) with Safety Factor SF = 2.5
- Design Target Critical Buckling Load: P_cr >= 35,000 * 2.5 = 87,500 N

Evaluating Jindal Section No. 14508 (100mm x 100mm x 3.0mm SHS):
- Outer Dimension A = 100 mm, Wall T = 3.0 mm
- Inner Dimension = 100 - 6 = 94 mm
- Moment of Inertia:
  I = [100⁴ - 94⁴] / 12 = [100,000,000 - 78,074,896] / 12 ≈ 1,827,092 mm⁴

Calculating Critical Euler Load:
P_cr = (π² * 70,000 * 1,827,092) / (2100)²
P_cr = (9.8696 * 70,000 * 1,827,092) / 4,410,000
P_cr ≈ 286,200 N (286.2 kN)

RESULT:
Section 14508 withstands 286.2 kN before buckling, providing an extraordinary
safety factor of 8.17:1! This guarantees absolute structural stability against
cyclonic wind gust downdrafts.

---

6. Pharmaceutical Cleanroom Framing & Laboratory Standards

Extruded aluminium square tubes (specifically Section Nos. 14455 and 14456) are the gold standard for constructing cleanrooms (ISO Class 5 to Class 8) across India's booming pharmaceutical and semiconductor sectors:

1. Non-Shedding & Non-Porous: Unlike painted steel frames that chip, shed microscopic paint particles, and rust at joints, smooth anodized aluminium does not harbor bacteria, fungal spores, or particulate contamination.
2. Flush Corner Cleat Assembly: Square tubes connect seamlessly using concealed internal extruded corner cleats, eliminating exterior screw heads and sharp crevices where dust can accumulate.
3. Chemical Washdown Resistance: Anodized aluminium ($15 - 25\text{ }\mu m$) withstands daily sanitization using harsh chemical agents such as isopropyl alcohol (IPA), hydrogen peroxide vapor (VHP), and quaternary ammonium disinfectants without pitting.

---

7. Sourcing Jindal Square Tubes at Premier Aluminium Traders

As an authorized dealer and stockist of Jindal Aluminium Limited, Premier Aluminium Traders supplies complete square tube structural solutions to OEMs, cleanroom contractors, and solar EPCs across India:

• Complete Dimensional Portfolio: Immediate inventory from $12.7\text{ mm}$ (1/2") miniature tubes up to $125.0\text{ mm}$ (5") heavy structural pillars.
• Certified T6 Hardness: Manufactured from high-purity primary billets, solution heat-treated and artificially aged to full T6 temper to guarantee minimum tensile yield strength ($\ge 170\text{ }MPa$ for 6063-T6, $\ge 240\text{ }MPa$ for 6061-T6).
• Surface Finishes Available: Mill finish, natural architectural anodizing, Qualicoat approved powder coating (RAL 9010 Cleanroom White, RAL 7016 Anthracite Grey), and wood-grain sublimation.
• Precision Cutting Services: Burr-free CNC miter cuts to exact lengths with $\pm 0.5\text{ mm}$ length tolerance.

Explore related structural categories:

• Jindal Aluminium Pipes & Tubes
• Jindal Extrusions Full Catalog
• Jindal Solar Frame Sections
• Jindal Window & Door Framing

---

Frequently Asked Questions (FAQs)

What is the difference between Section No. G105209 and Section No. 14508?

Both sections measure $100\text{ mm} \times 100\text{ mm}$ externally. However:

• G105209 has a wall thickness of $2.00\text{ mm}$ ($2.117\text{ }kg/m$) and is engineered for non-load-bearing architectural cladding and aesthetic box covers.
• 14508 has a heavier structural wall thickness of $3.00\text{ mm}$ ($3.142\text{ }kg/m$) and is engineered for load-bearing vertical columns, pergola pillars, and industrial machine frames.

How do I connect aluminium square tubes without welding?

Aluminium square tubes can be assembled cleanly using internal friction corner cleats or pre-drilled internal cast-aluminium corner elbows. Screws are driven from the inside or bottom, producing 100% rigid, weld-free, flush joints ideal for cleanrooms and display frames.

Can aluminium square tubes be used outdoors without painting?

Yes. When supplied with a standard $15\text{ to }20\text{ }\mu m$ architectural clear anodized coating, aluminium square tubes will withstand decades of direct rain, humidity, and UV exposure without rusting or peeling, completely eliminating maintenance repainting.

How do I calculate the weight of a custom square tube?

Multiply the perimeter difference $(A - T)$ by the wall thickness $T$ and by $0.0108$: $$\text{Weight }(kg/m) = (A - T) \times T \times 0.0108$$ For example, for a $50\text{ mm} \times 50\text{ mm} \times 2.5\text{ mm}$ square tube: $(50 - 2.5) \times 2.5 \times 0.0108 = 47.5 \times 2.5 \times 0.0108 = 1.283\text{ }kg/m$.

---
